Model

TA622A

TA622B

TA622C

 Measurement Method

 One Piece

 Split Type

 Temperature

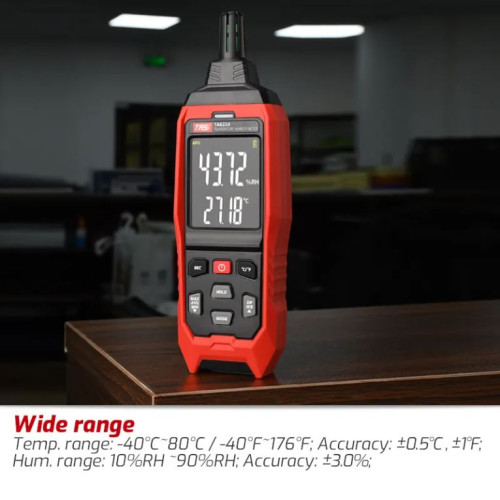

 Range:-40°C ~ 80°C (-40°F ~ 176°F)
 Accuracy:±0.4°C ,±1°F
 Resolution:<100°F  0.01 °C/ 0.01 °F,≥100°F  1°F

 Humidity

 Range:10 ~ 90%RH
 Accuracy:±3.0% RH
 Resolution:<100°%RH  0.01 °%RH,=100°%RH0.1°%RH

 Wet Bulb (WB)

 Range:-40°C ~ 80°C (-40°F ~176°F)
 Accuracy:±0.4°C ,±1°F
 Resolution:<100°F  0.01 °C/ 0.01 °F,≥100°F  1°F

 Dew Point (DP)

 Range:-40°C ~ 80°C (-40°F ~176°F)
 Accuracy:±0.4°C ,±1°F
 Resolution:<100℃  0.01 °C/ 0.01 °F,≥100°F  1°F

 K-Type Thermocouple (Only TA622C)

 K Range:-50℃ ~ 1300℃ (-58°F ~ 2372°F)
 Accuracy:±(0.1%+1.0°C) ,±(0.2%+1.0°F)
 (not including the probe error)
 Resolution: 1°C / 1°F

 Swiss High-Precision
 Digital  Sensor

 Yes

 Operating Environment

 Temperature: -40°C ~ 50°C
 Humidity: ≤80%RH
 Indoor Altitude <2000m

 Storage Environment

 Temperature: -10°C ~ 50°C
 Humidity: ≤ 70%RH (remove the battery)

 Sampling Rate

 About 10 Times / Sec

 Updating Rate

 About 3 Times / Sec

 Auto Off

 15 Minutes

 Data Storage

 TA622A 8000 Groups

 TA622B 4000 Groups

 TA622C 8000 Groups, Only Store the Temperature and Humidity
 Data (Do not support thermocouple data storage)

 Data Upload

 Date Upload and Real-Time Measurement, Only TA622B

 Synchronous Update

 Refer to PC Information for Program Upgrade

 Program

 Refer to PC Program

 Recording Time

 From REC Star, Max 99 Hours

 Power

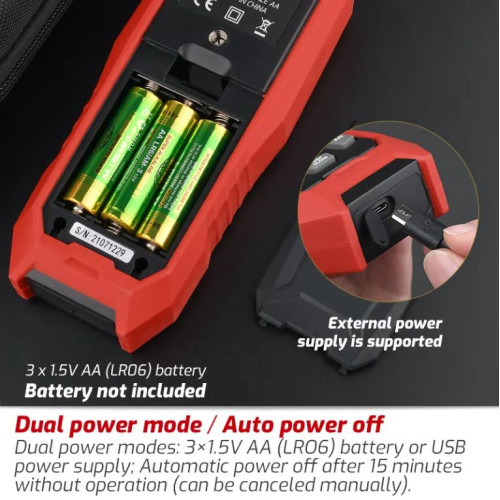

 3*1.5V AA(LR06) Battery

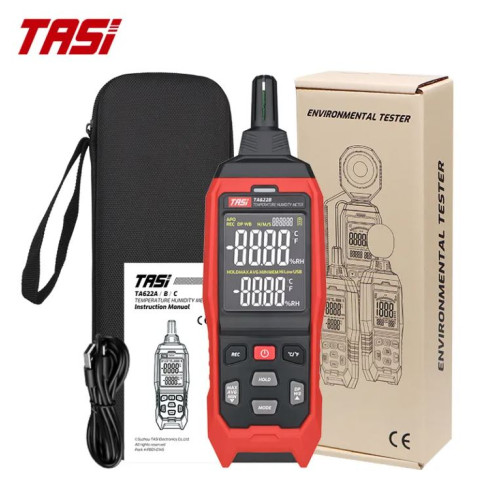

 Standard Accessories

 Color Box, Cloth Bag, Instruction Manual

 Product Size

 218 x 67 x 35mm

 Packaging Method

 Color Box + Cloth Bag

 Product Weight

 190g (not including the battery)

 Single Package Size

 295 x 95 x 45mm

 Single Packaging Weight

 420g
