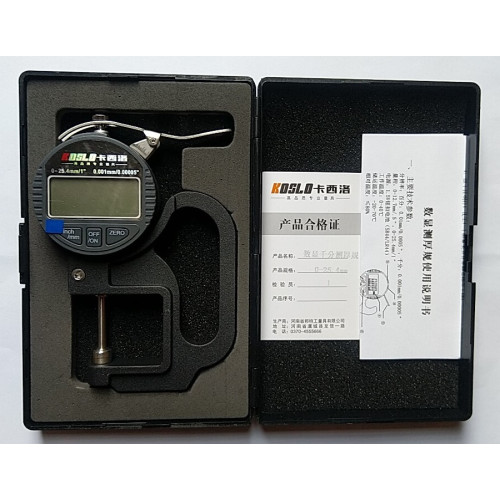

Features & Specifications:

1. Measuring Range 25mm
2. Accuracy Resolution 0.001mm
3. Hardened alloy measuring head
4. Quick display of the measured value on big LCD screen
5. Two different measuring head (please check carefully before order )
6. Measurement for the thickness of jewelry, leather, metal film, paper, rubber, fabric, and various metal panel, glass sheet etc.
7. Buttons: On / Off, Zero, MM / Inch, Data Hold, Max/Min
8. Operating Temperature :-10-40°C
9. Humidity: ≤80% RH
10. Battery : 3.7V Lithium battery (Rechargeable battery), Charging / Communication Interface: USB Type-C
11. Directly measure the maximum, minimum value and range
12. Analog pointer
13. Absolute measurements
14. Data output

Operation:

1. On/Off Key: Press to start or shut down the machine
2. MM/IN Key: Press for short time to convert metric to inch units,
3. MM/IN Key: Press for long time to change the direction of measurements
4. Hold Key: Press for short time for data retention,
5. Hold Key: Press for long time to set the current analog pointer to zero
6. ZERO/MAX/MIN Key: Press for short time to set the LCD data to Zero
7. ZERO/MAX/MIN Key: Press for long  time to start or exit the maximum value, minimum value ,range measurement etc.
