LX-C Hardness Tester Meter: Precision in Measuring Shore Durometer Type LX-C for Foam, Silicone and Soft Rubbers

When it comes to determining the hardness of various materials like rubber and plastic, the LX-C Hardness Tester Meter is an indispensable tool. Designed with high precision and user-friendliness in mind, this Shore durometer offers reliable performance for professionals in quality control, research, and development. Let’s explore the features, technical specifications, and practical applications of this versatile hardness tester.

Key Features

1. High-Quality Construction

Robust Design:

Made with durable materials, the LX-C Hardness Tester Meter is built to withstand rigorous use. Its solid construction ensures long-lasting performance.

Handheld Portability:

The device's compact size (115 × 60 × 25 mm) and lightweight design (0.3 kg) make it easy to carry and use in various testing environments.

2. Versatile Measurement Capabilities

Wide Range of Applications:

Suitable for measuring the hardness of low-hardness plastics, leather, various rubbers, multi-resin materials, and wax. It’s also capable of testing microporous materials and other similar substances.

Precision and Accuracy:

With a resolution of 1 HD and an accuracy that meets high industry standards, the LX-C Hardness Tester delivers precise and reliable measurements every time.

3. User-Friendly Design

Analog Indication:

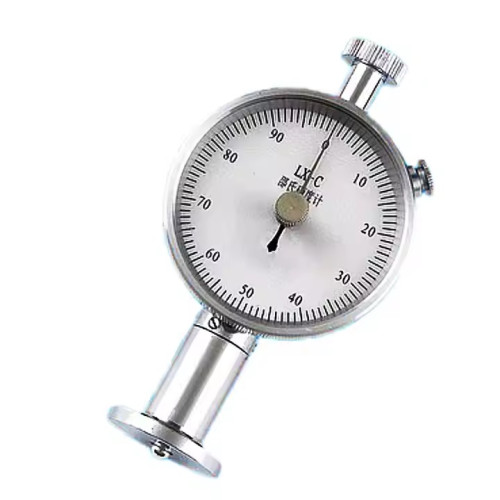

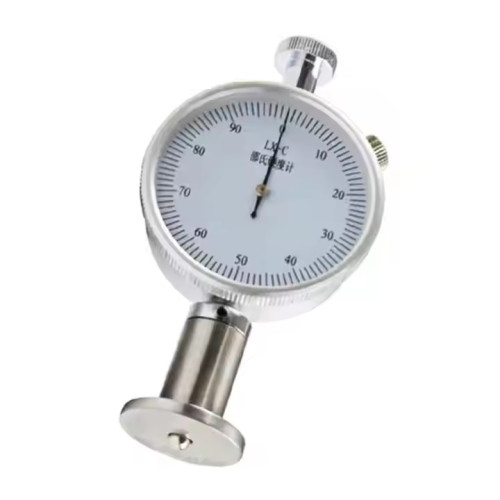

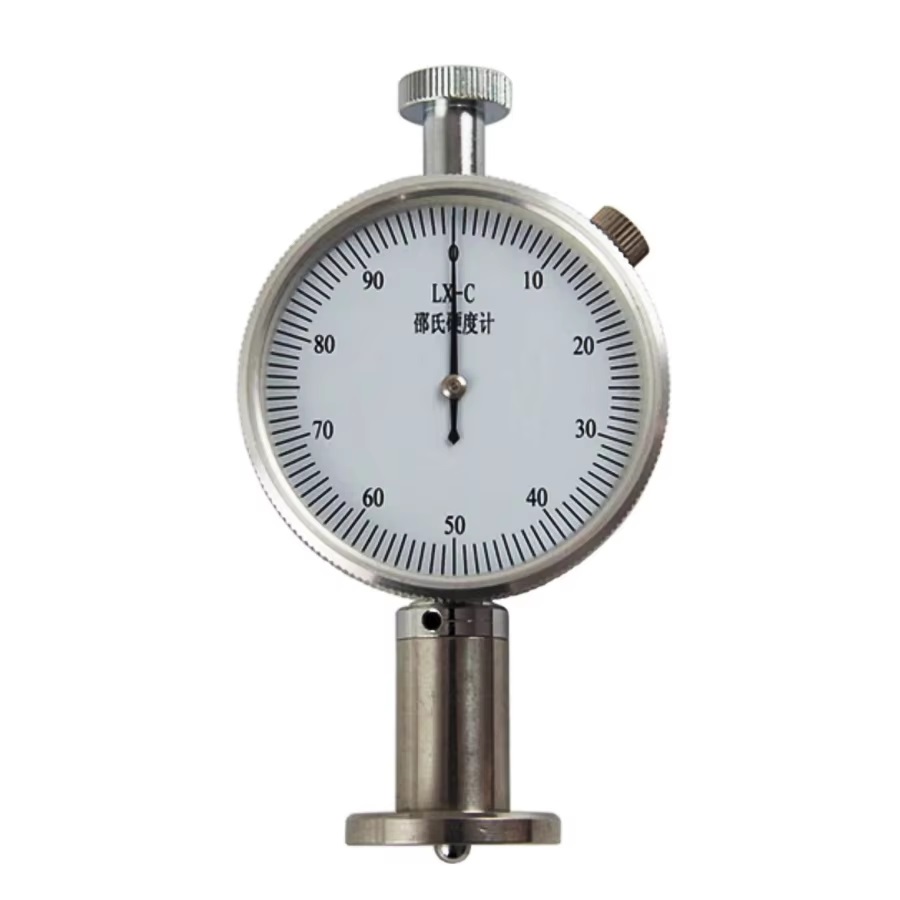

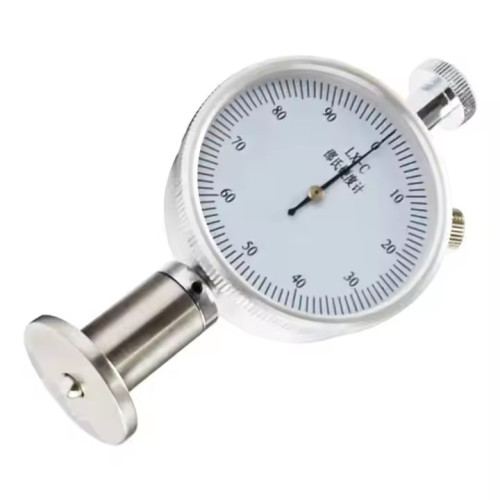

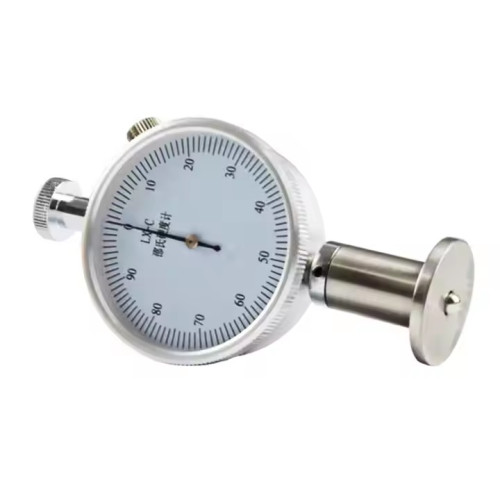

The clear analog dial is easy to read, ensuring accurate results. The dial value ranges from 0 to 100 HA, covering a wide spectrum of hardness levels.

Ease of Use:

Designed for both handheld and stand-mounted testing, this durometer offers flexibility and convenience. It features a pressure needle stroke of 2.5 mm and a pressure needle size of SR0.1 mm with a 30-degree cone angle.

Technical Specifications

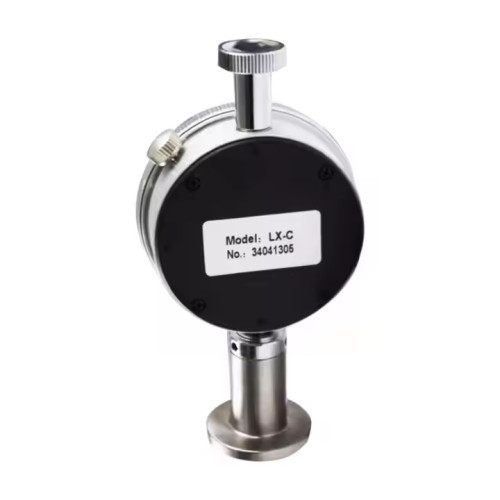

• Model: Shore C
• Scale Value: 0 ~ 100 HD
• Recommended Measuring Range: 20 ~ 90 HD
• Dial Value: 0-100 degrees
• Types: * Type A: 0.55N-8.05N
• Type C: 0.55N-8.05N
• Type D: 0-44.5N
• Resolution: 1 HD
• Dimensions: 115 × 60 × 25 mm
• Pressure Needle Range: 0-2.5 mm
• Apparatus Weight: 0.3 kg
• Pressure Needle Size: SR0.1 mm (30-degree cone angle)

Functionality and Use

1. Measuring Hardness

Types of Materials:

The LX-C is suitable for a wide range of materials, including low-hardness plastics, leather, rubber, multi-resin materials, and wax. It can also measure the hardness of microporous materials.

Standards Compliance:

The device references standards such as HG/T2489, ensuring that it meets industry requirements for hardness testing.

2. Detailed Instructions for Use

Step-by-Step Guide:

• Place the sample on a solid surface.
• Hold the hardness tester so that the panel is directly visible.
• Ensure the indenter is at least 12 mm away from the sample's surface.
• Press the tester steadily into the sample until the presser foot is in full contact.
• Read the value within 1 second.
• Test each sample at least five times, ensuring each test point is at least 6 mm apart.
• Calculate the average value for accuracy.

The LX-C Hardness Tester Meter is an essential tool for professionals involved in the testing and quality control of Foam, soft rubbers, silicone, and other materials. Its high precision, versatile functionality, and user-friendly design make it an invaluable addition to any laboratory or industrial setting. Whether you're in interior decoration, architecture, or product development, the LX-C Hardness Tester Meter ensures accurate and reliable hardness measurements, enhancing the efficiency and quality of your work.
