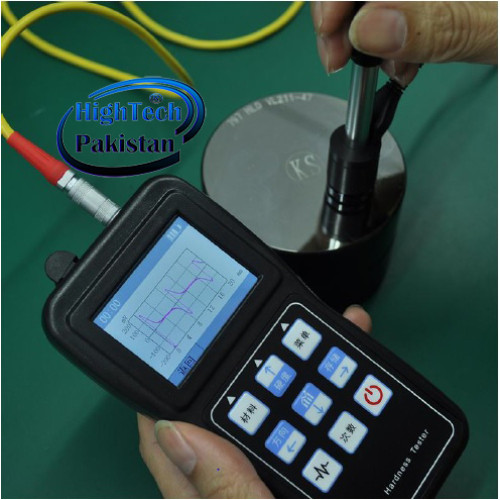

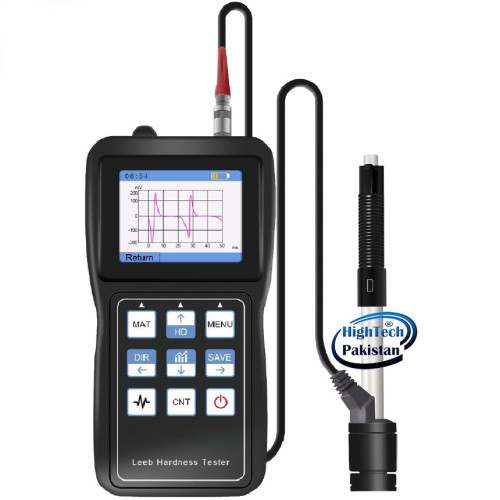

Leeb Hardness Tester for Metals with Colored Screen, Printer Support, Plug & Play Probe, 100 Groups of Memories, USB Data Transfer to Computer, High Precision Portable Hardness Tester with One Year Warranty with CE Quality Certificate

Split segment code screen hardness tester is a portable measuring instrument that can measure the hardness of common metal materials quickly, without damage and with high accuracy. It can be used in both laboratory and engineering site. Through the setting of instrument measurement conditions, it can meet the needs of many kinds of measurement. This instrument is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection fields. It is a necessary instrument for nondestructive hardness testing of materials. The instrument meets the following standards:

——《JJG 747-1999 Leeb Hardness Tester 》

—— 《ASTM A956-06 Standard Test Method for Leeb Hardness Testing of Steel

Product Features

- According to the principle of Leeb hardness measurement, a variety of metal materials can be tested
- High-contrast segment code LCD display, simple and convenient operation
- One host can be equipped with 7 different impact devices, and the type of impact device can be automatically recognized, and there is no need to recalibrate when replacing
- It has the function of indication software calibration
- It can store up to 100 groups of hardness measurement data (impact times 32 ~ 1). Each group of data includes single measurement value, average value, impact direction, times, material, hardness system and other information
- There is an indicator of remaining battery power on the display screen, which can display the remaining battery power in real time. With high brightness LED backlight display, it is convenient to use in dim light environment
- With USB interface, it can exchange data and set parameters with PC conveniently and quickly. It can be connected to a micro printer (model specified by the manufacturer) to print the test report
- Equipped with microcomputer software (optional configuration), it has rich functions such as transmission of measurement results, storage and management of measurement values, statistical analysis of measurement values, printing of measurement reports, and batch setting of instrument parameters to meet higher requirements for quality assurance activities and management
- The power supply adopts two AA ordinary alkaline batteries, which can work continuously for not less than 100h; It has power-saving functions such as automatic sleep and automatic shutdown
- The instrument is compact, portable and highly reliable. It is suitable for harsh operating environment and is resistant to vibration, shock and electromagnetic interference
